Új cikkszám. Elődje: : HERTH+BUSS ELPARTS 50268517
A csomagolás tartalma: 25 db. termék.
Részletes adatok
Anyag:
Acél
Minőség/osztály:
Typ W1
DIN-szabványok (bilincsek):
DIN 3021 (Rugólemez bilincs)
Szélesség:
12 mm
Névleges átmérő:
17 mm
Min. feszítő tartomány:
15,6 mm
Feszítési tartományig:
18,5 mm
hőmérséklet-tartománytól:
-40 °C
Hőmérséklet-tartományig:
+200 °C
Felület:
ónozott
Csőkapcsoló:
Rugós szalag bilincs
SVHC:
Nem található SVHC anyag!

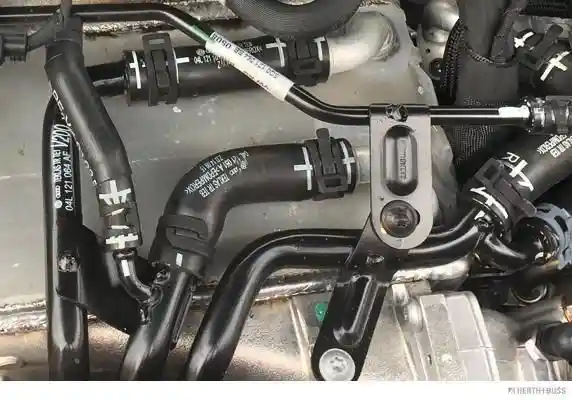

Műszaki információ: Spring-band clamps have an advantage over conventional hose clamps in that they adapt to the respective diameter in the area of application. The flexible holding mechanism of the clamp makes this possible. If the temperature rises in the area of application, the fluid system increases its diameter ? the clamp thereby adapts to the increased cross-section. The opposite also applies for the cold. This means that all air or fuel circuits present in the vehicle are always securely attached. The optimum hold provided by the systems also creates one further advantage: This attachment solution is more durable, as the pipelines do not chafe or rub.
